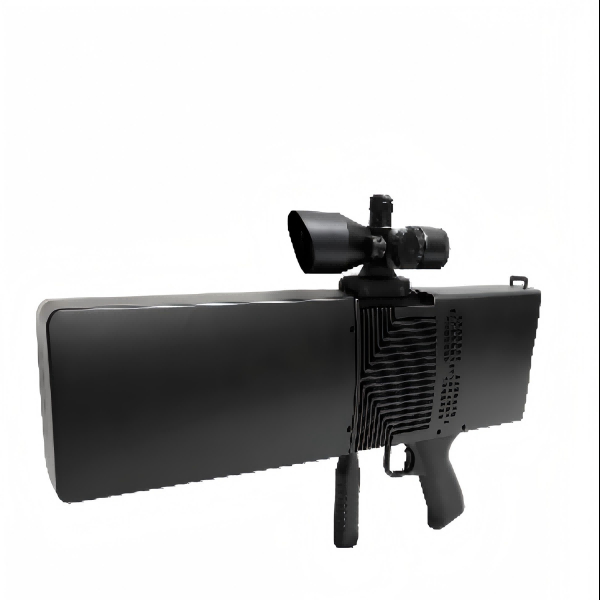

Ⅰ. Product Presentation
The portable UAV jamming device features compact size, lightweight design, and portable handheld operation. With its user-friendly design, it can be activated at any time to conduct comprehensive detection and countermeasures against drones. By disabling flight control commands and satellite positioning information, the device prevents normal flight operations, effectively controlling unauthorized drone activities through forced landing and removal.
Ⅱ. Equipment Features
1. High Integration
Combines detection, early warning, target identification, and jamming capabilities into a single system with closed-loop control.
2. Rapid Detection
360° full-directional detection within seconds, triggering immediate audio-visual alerts upon detection.
3. Precise Identification
Accurately identifies drones of the same brand, model, and frequency band.
4. Comprehensive Coverage
Supports over 98% of commercial drone models and DIY aircraft.
5. Target-Specific
Quickly determines drone intrusion direction and activates jamming modules for beyond-line-of-sight targeting.
6. Versatile Applications
Compact design enables individual deployment for drone detection and countermeasures, ideal for low-altitude security scenarios.
Ⅲ. Product Functions
|
Parameter Name
|
Parameter Value
|
|
Counter-model
|
Radio Frequency Interference
|
|
Counter objects
|
Drone video transmission, flight control link, navigation signal
|
|
Counterband
|
433MHz,800MHz,900MHz,1.2GHz,1.4GHz,1.5GHz,1.6GHz,2.4GHz,5.2GHz,5.8GHz
|
|
Interference function
|
Interferes with the navigation/remote control/video transmission communication links of drones, causing drones to return to home or land
|
|
Countermeasures type
|
Directional Antenna
|
|
Scope of countermeasures
|
30°
|
|
Distance of counterattack
|
1.5-2km (varies depending on the drone model)
|
|
The corresponding time
|
3s
|
|
Endurance time
|
1h per battery, with plug - and - play battery
|
|
Charging time
|
≤3h
|
|
stand-by time
|
≥60 days
|
|
size
|
490mm*260mm*90mm
|
|
weight
|
3.9kg (including the sight)
|
|
Accessories
|
Sightings, suitcases, car seats, batteries
|
|
levels of protection
|
IP66
|
